FW-ED08 1535nm Eye-safe Laser Ranging Module with 10 km Range UART (TTL_3.3V) and Multi-pulse Ranging Technology

Name: FWED08 1535nm Eyesafe Laser Ranging Module with 10 km Range UART TTL33V and Multipulse Ranging Technology
Brand: Forward
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Forward

Model Number :FW-ED08

Place of Origin :China

MOQ :1 set

Payment Terms :L/C,T/T

Supply Ability :100 pcs/year

Delivery Time :5-8 work days

Laser Wavelength :1535±5nm

Launch Lens Diameter :Φ12mm

Receiver Lens Diameter :Φ35mm

Ranging Accuracy :±2m

Range Resolution :≤50 m

Divergence Angle :≤0.3 mrad

Contact Now

Add to Cart

View Product Description

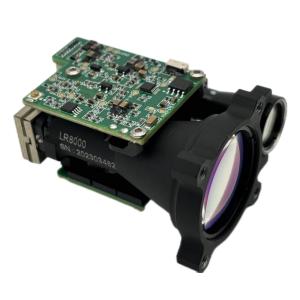

Descriptions of FW-ED08 1535nm Eye-safe Laser Ranging Module

The FW-ED08 eye-safe ranging module is developed by our company based on the

self-developed 1535nm erbium glass laser. It belongs to Class 1 eye-safe products. The product adopts multi-pulse ranging technology, and the maximum ranging distance can reach 10 km. It supports UART (TTL_3.3V) and provides embedded software, which is convenient for users' secondary development. It has the advantages of stable operation, small size, light weight, etc., and is widely applied in various fields such as security monitoring, road monitoring, robotic arms, night vision, unmanned aerial vehicles, gun sights, golf, outdoor hunting, optoelectronic pods, infrared thermal imaging, engineering surveying, intelligent grain storage bins, etc.

Specifications of FW-ED08 1535nm Eye-safe Laser Ranging Module

Laser Wavelength	1535±5nm
Eye Safety	Class 1
Divergence Angle	≤0.3mrad
Laser Energy	≥300 μJ
Launch Lens Diameter	Φ12mm
Receiver Lens Diameter	Φ25mm
Measuring Range(Reflectance 30%; visibility ≥ 10km.)	NATO objective(2.3m×2.3m) ≥8000m Measuring human target(0.5m×1.7m) ≥1500m
Minimum Range	≤50 m
Ranging Accuracy	±2m
Ranging Frequency	1Hz ~10Hz
Number of multi-target detections	Up to 3 targets
False Alarm Rate	≤1%
Precision Rate	≥98%
Pin-in-lead package model	A1257WR-S-6P
Supply Voltage	DC 4.5-16 V
Standby Power Consumption	≤1mW
Average power consumption	≤4 W
Peak Power Consumption	≤14W @12V
Weight	≤58g±1g
Dimention (L×W×H)	65×48×32mm
Operation Temperature	-40~＋70℃
Storage Temperature	-55~＋75℃
Impact Resistance	Meet the MIL-STD-810G testing standard
Vibration Resistance	Meet the MIL-STD-810G testing standard

Outline Dimension(mm)
