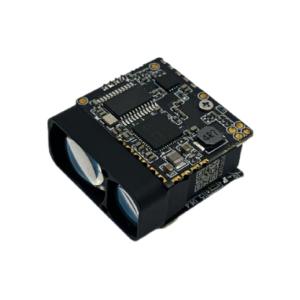

Descriptions of FW-ED02 905nm Laser Ranging Module
Specifications of FW-ED02 905nm Laser Ranging Module
| Laser Wavelength | 905nm |
| Eye Safety | Class 3R(IEC 60825-1) |
| Divergence Angle | 1×6mrad |
| Receiving Field of View (FOV) | ≤20mrad |
| Launch Lens Diameter | Φ10×7.5mm |
| Receiver Lens Diameter | Φ15×10mm |
| Measuring Range(building) | ≥5~1200m |
| Ranging Accuracy | ±1m |
| Ranging Frequency | 3Hz(5~45m)；0.75~3Hz(45~2000m) |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Data Interface | UART(TTL_3.3V) |
| Supply Voltage | DC 3~5 V |
| Standby Power Consumption | ≤1mW |
| Operating Power Consumption | ≤1.5W |
| Weight | 10±0.5g |
| Dimention (L×W×H) | 25×26×13mm |
| Operation Temperature | -20~＋55℃ |
| Storage Temperature | -55~＋65℃ |
| Impact Resistance | 1200 g,1 ms |
| Anti-vibration | 5～50～5 Hz,1 Octave range /min,2.5 g |
| Dependability | MTBF≥1500 h |
| Activation Time | ≤200ms |
| Waterproof rating | Lens IP67 |
| ESD Class | (Lens position) Contact discharge 6kV Air discharge 8kV |
| Electromagnetic Compatibility (EMC) | CE/FCC Certification |
| Eco-friendly | RoHS2.0 |
Outline Dimension(mm)
